Flange Measurement Tools
Precision flange ball trammel designed for accurate measurement and inspection of flange and Ring Type Joint (RTJ) profiles from 1½" to 24".
Enquire about product
Overview
Product information for technical review.

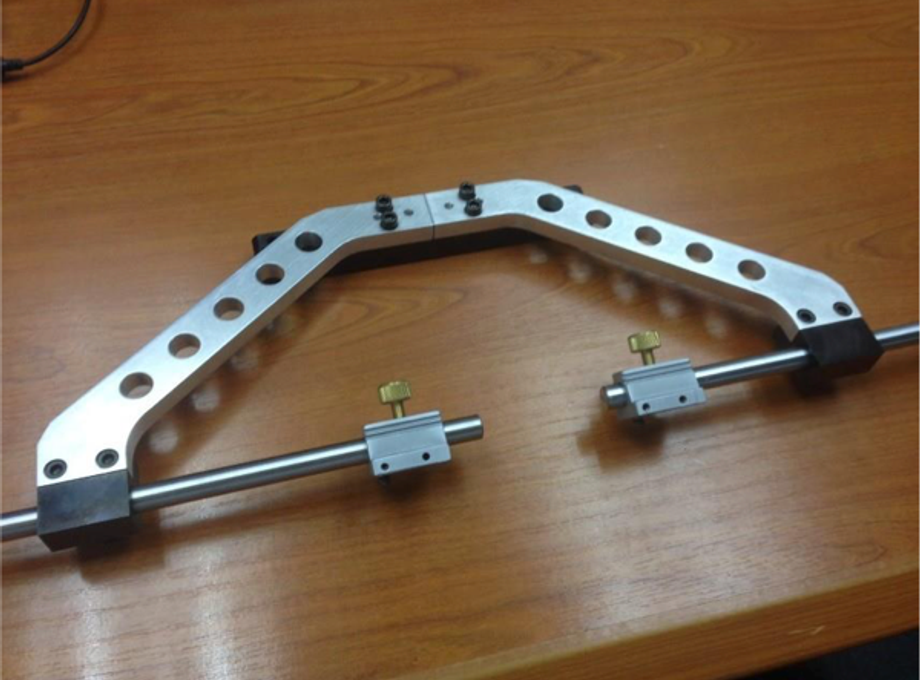

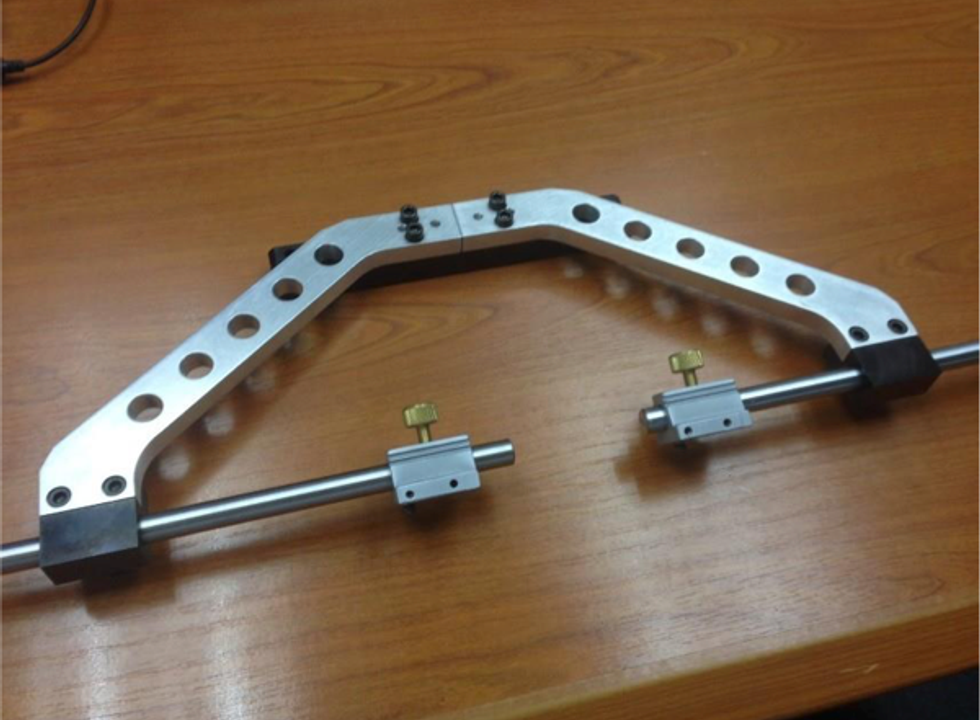

The ARTJ1 Flange Ball Trammel is a portable precision measurement tool designed for checking and measuring flange and Ring Type Joint (RTJ) features. Covering flange sizes from 1½" to 24" , the ARTJ1 provides a practical method for obtaining accurate dimensional measurements during flange inspection, maintenance, repair and machining operations. Its portable design makes it suitable for on-site use where technicians need to verify flange dimensions before, during or after machining. The tool can support quality-control activities and help ensure flange and RTJ surfaces meet the required dimensional specifications.
Key features
- Wide Measurement Range
- Precision RTJ Measurement
- Portable for On-Site Use
Applications
- Flange Inspection
- RTJ Profile Measurement
- Pre-Machining Verification
- Post-Machining Quality Control
